MORPHOMETRICS: INTRODUCATION TO THE ANALYSIS OF SHAPE
We encourage everyone interested in this subject to examine the excellent "PalaeoMath" series of articles by Norm MacLeod. Furthermore, for those interested in exploring these techniques directly, please check out the following software packages:
We have seen the Raupian attempt to reduce morphological variation to a small number of parameters. In all but the simplest systems, such a method greatly oversimplifies morphology. Nevertheless, the need to describe morphology with quantitative rigor is fundamental to descriptive paleontology, and to the testing of hypotheses of functional morphology. In this lecture we consider morphology and function separately.
Morphometrics: The quantitative study of form, including both size and shape. Fundamental to the description of individual specimens and collections of specimens in order to: recognize the degree of distinctiveness of different morphs (which might be age stages, sexes, taxa, etc.); trace changes due to evolution, ontogeny, etc.; and to remove the disruptive effects of taphonomy by retrodeformation back to the original shape.
Traditional morphometrics: Measurements that have become standardized for the description of morphology through tradition, usually owing to their lack of ambiguity. Naturalists have been using calipers to obtain quantitative information about morphology for centuries. That information has been fed into multivariate statistical analyses for a full century. These begin to enable us to describe distributions of morphological variation.
The key here is to develop and recognize landmarks: points on a body (often where bones or other body parts join together) which can be compared from one specimen to another.
But what do the data actually mean? In traditional morphometrics, data are measurements of the distances between points on a specimen. These points may be:

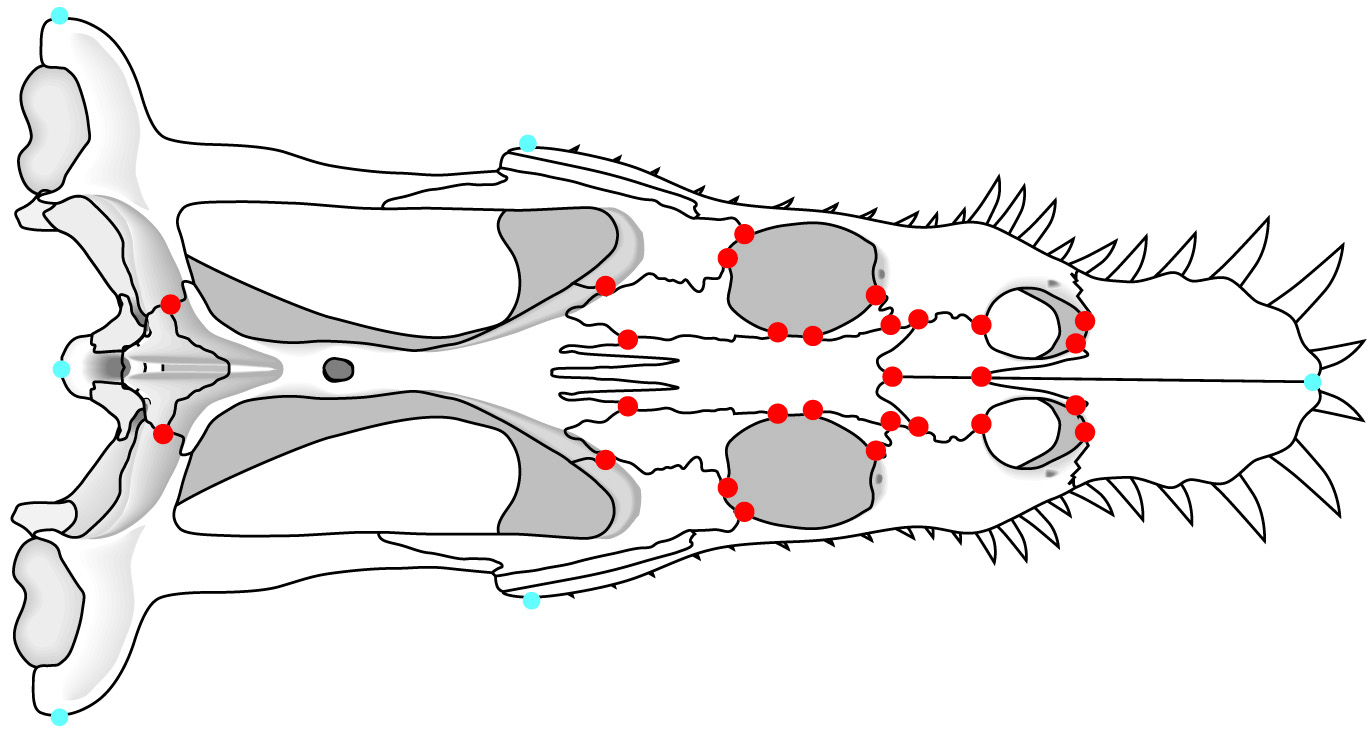

Landmarks: Discrete points marked by homologous features (right - red) like:
Intersections of sutures in bones
Branching points of veins
Other similar points
Semilandmarks: Arbitrary points on the exterior margin describe shape but may be non-homologous (right - blue) like:
points of maximum width
the tips of snouts
These measurements are indirectly related to shape, but are, in fact measures of distance. We might plot these onto a standard Cartesian coordiate system (with some spot arbitrarily chosen as the origin), or by a self-generated coordinate system resulting from all distances between all points.
One of the most standard of all statistical analyses is:
Least-squares linear regression: A cluster of bivariate data points are reduced to a line that minimizes the residuals - distances from the line to the data points - on the Y variable on the the square root of the sum of their squares. The regression line represents an estimate of the relationship between the variables. The more strongly correlated the variables, the closer the cluster of points will fall to the regression line. This standard regression (the one built into Excel, for instance) assumes that variable X is the known (dependent variable) that is being varied to produce a change in the independent variable Y.
Reduced Major Axis (RMA) regression: Another bivariate plot, but where the line minimizes the residuals on BOTH X and Y. This results in a line which is invariant as to which variable is which axis, and doesn't require an a priori decision as to a "dependent" and an "independent" variable.
Phylogenetic Considerations: Biologists are fond of performing statistical studies, looking for meaningful correlations between measurable aspects of different parts of animals' anatomies. For instance, one might look at the ratio of the length and depth of birds' beaks vs. the length of their tarsals to see if larger birds have proportionately deeper beaks. Measurements of this sort can be subjected to the full range of statistical analyses. A fundamental assumption of such studies is that all observations be made from independent members of the same underlying population.
However, when samples are being taken from groups of populations nested in a hierarchical phylogeny, this assumption is violated. The example at right shows of how misleading this can be. Imagine a simple phylogeny with two sister clades, one black, the other red. When we make a bivariate plot of data taken from them, there appears to be a strong statistical relationship. But in fact, when we compare values only within each clade, we see very low correlation.
Fortunately, Joe Felsenstein of the University of Washington provided a first attempt at a solution in a statistical technique for adjusting data to account for the phylogeny of the taxa sampled, called phylogenetically independent contrasts (PIC). This method is based on the concept that although the taxa may be non-independent, the differences between measured values in them are independent. Statistical correlation techniques are, therefore, applied to pairwise contrasts in measurements from sister taxa. By applying it, meaningful correlation studies can be performed. Without it, they would be meaningless or misleading. Applying this method absolutely requires a known phylogeny. If hypotheses of phylogeny change, the results of correlation studies based on them must be revised, too.
Work in subsequent decades have recognized Felsenstein's method is just one of multiple alternative solutions with different models of evolutionary change. Many additional alternative statistics have been developed, depending on the model of evolution assumed in a given situation.
PRINCIPAL COMPONENTS ANALYSIS (PCA)
What if you are interested in examining many variables in the same system? You can do a series of bivariate plots, doing each possible pair of variables as its own graph. As the number of variables increases, though, this becomes difficult to interpret. One could to a trivariate plot (XYZ plot), but these can be difficult to interpret (you need to move the figure around to get the sense of the distribution of data), and only gets you one more variable. Thankfully, there is a good way of boiling down multiple variables into a more simplified format.
PCA need not be done only on morphometrics. For instance, ecologists and paleoecologists often use abundance data of species (where localities are the object of study and the abundance of each species is the variable) to find similarities and dissimilarities between localities.
A related technique is Principle Coordinate Analysis, which doesn't require that every cell in your measurement matrix is occupied.
Discriminant function Analysis: Suppose two distinct groups are known a priori (for example, herbivores and carnivores), and two variables, x and y, are measured and plotted. We see that the populations form two clusters, but neither variable, x nor y, does a good job of separating them by itself. A discriminant function (blue line at right) can be identified, however, that maximizes the distinction between them. Were we to introduce data for a new specimen whose group membership is unknown, we could estimate it based on where it fell on the discriminant function.
This may be trivial for a bivariate plot, but discriminant function analysis also works for multivariate analyses in many dimensions, where data cannot be as easily visualized.
D'Arcy Thompson: (1860-1948) Was the first pioneer in the investigation of the relationship between growth, evolution, and geometric form. His classic On Growth and Form identifies such famous examples as the relationship between the Fibonaci sequence and spiral patterns in plant growth. In fact, he was preoccupied by the constraints imposed by the interaction of simple transformational processes and specific initial conditions.
Thompson was fond of expressing morphological variation in terms of "transformations" - by which the shape of one species could be transformed into that of another by the application of regular simple transformations, reflected as deformed grids. (E.g. puffer and mola, right.) Although clever and not lacking merit, these reflected a level of subjectivity. Indeed, the technique was pioneered by the Renaissance artist Albrecht Dürer. They pointed out the need for an algorithmic approach to the quantitative analysis of shape, however, which were finally developed in the 1980s and 1990s. Here is a synopsis of what has emerged.

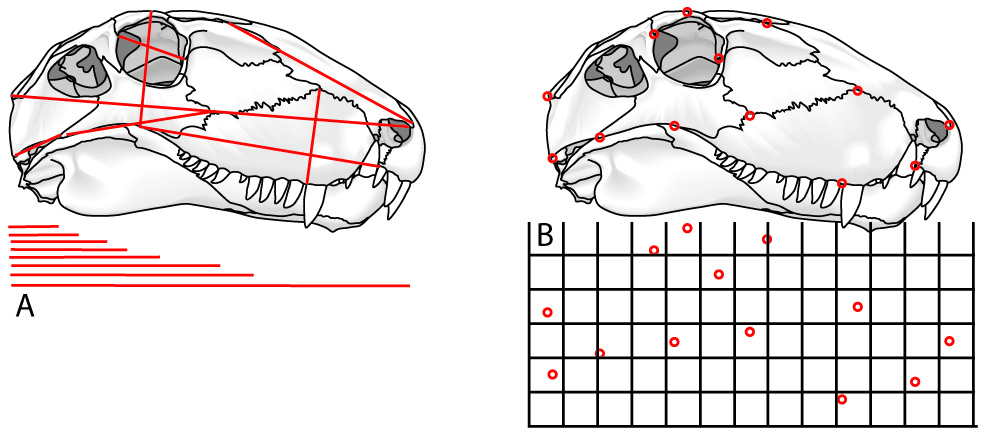

A. Traditional morphometrics: size information is preserved but shape is lost.
B. Landmark-based morphometrics: Shape information is preserved.
Landmark-based analysis: Dismisses the measurements of traditional morphometrics and focuses on the distribution of the landmarks - homologous identifiable points in sets of comparable samples. Landmark positions are first recorded as cartesian coordinates, thus preserving information about shape.

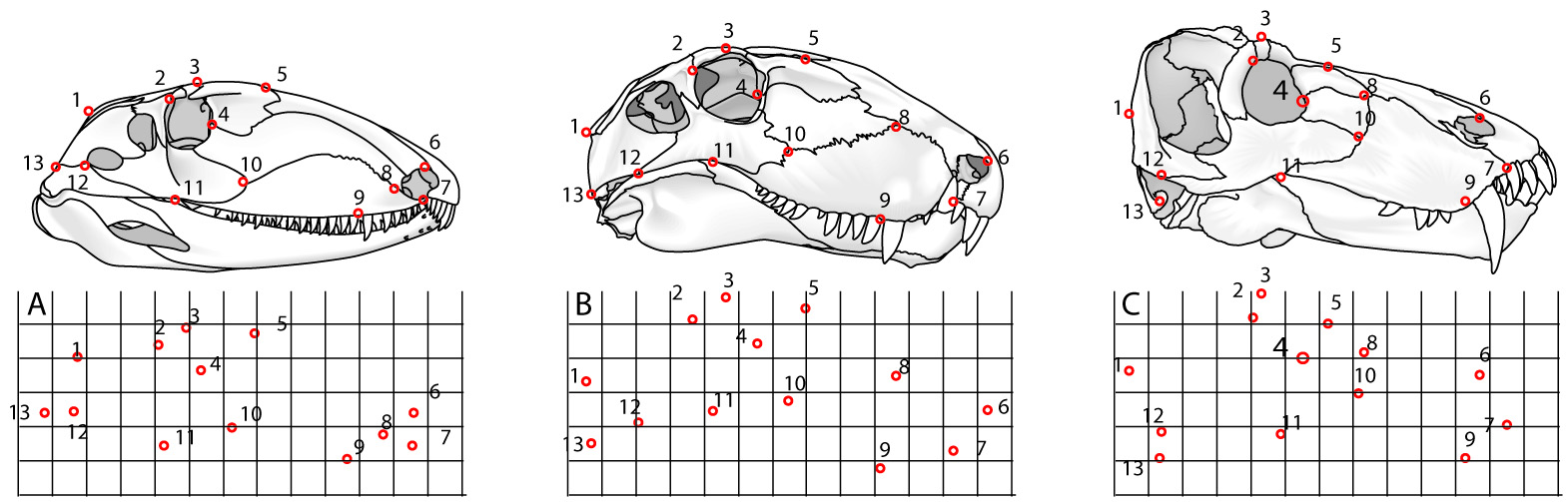

Example: For illustration, we show three specimens with different shapes. In practice, a normal data set would contain more. Constraints:
The data must reflect shape adequately.
Comparable landmarks must be present on all specimens.
The number of specimens required depends on the size of the difference you seek to study compared to the amount of variation in your group.
Step 1: Data acquisition. Can be through:
Calipers, steel tape, etc. on the real specimen
Digital measurements on images of the same

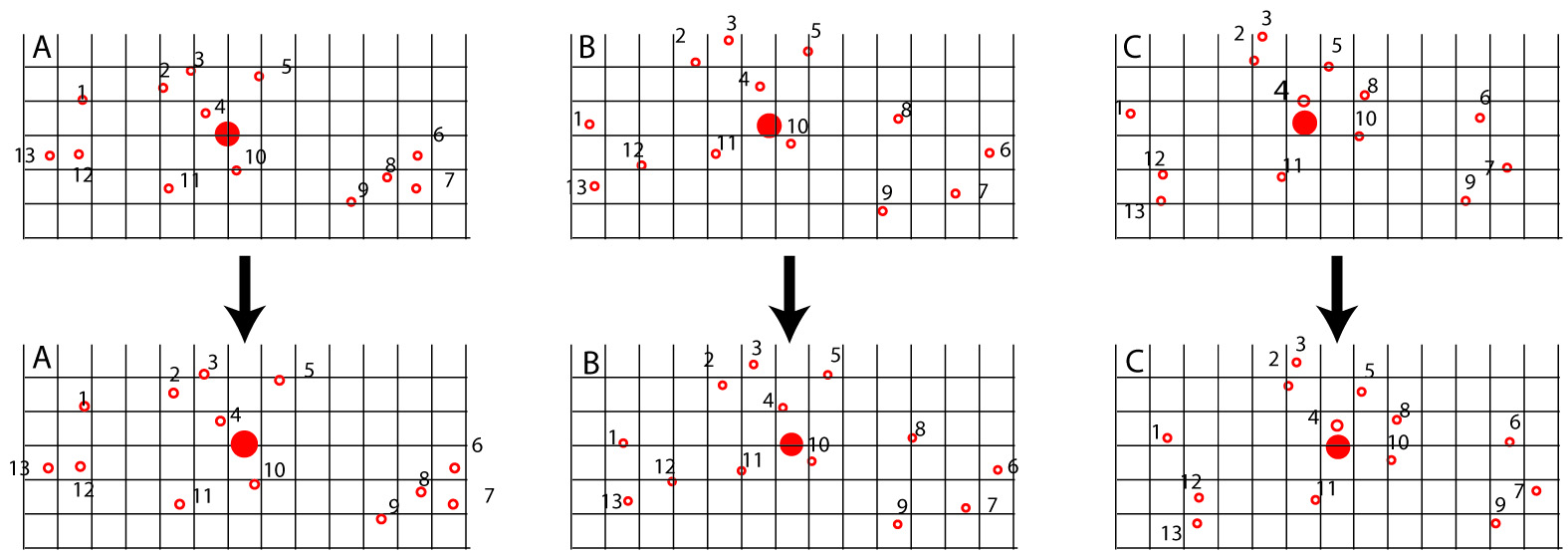

Step 2: Procrustes superimposition. A series of steps in which size, positional, and orientation data are removed, leaving only shape.
Centroids calculated for all shapes
Size and orientation normalized using least squares concept.

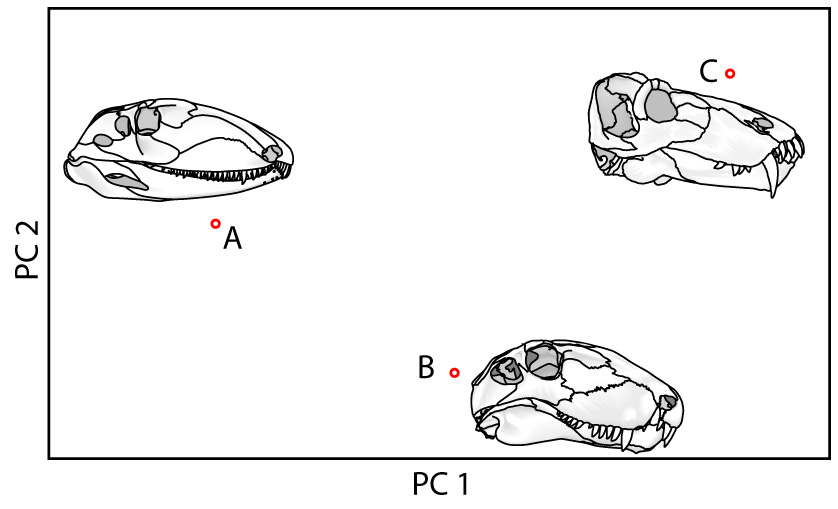

Step 3: Principal Component Analysis. With size and orientation information removed, landmarks can now be treated as variables in PCA. The results map non-correlated sources of variation in shape without respect to size. This can be explored graphically with reference to the original data (right) or through thin-plate spline grids.

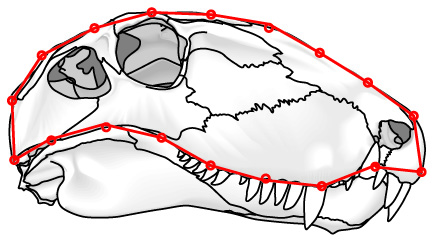

Outline-based analysis: An alternate approach involves describing the outline of an object mathematically by the fitting of coefficients of mathematical functions to a regular array of preset semilandmarks around the outline. In this case, there is no expectation that the points represent homologous features.

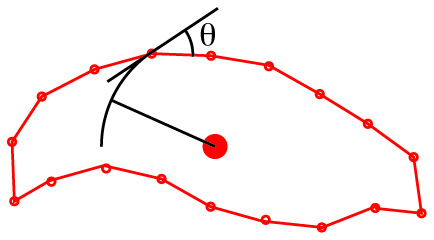

Schematic for eigenshape analysis.
Eigenshape analysis: A common method of mathematical description is eigenshape analysis, in which a preset number of regularly spaced semilandmarks approximate the object's shape. For each semilandmark, the deviation of the angle of the line connecting it to the next from a circle centered on the centroid is recorded for each semilandmark, becoming a variable in a PCA, whose results can be expressed graphically.
For closed curves, Elliptical Fourier analysis: (Not pictured) In which the shape of the outline is approximated by the sum of the minimum number of ellipses needed to mimic its shape. This only works on outlines that are consistently convex.
Morphometrics in three dimensions: Most of the techniques discussed here can in principle be adapted for use with three-dimensional objects, although logistics become more complex.
Data acquisition: Depending on the size of the subject:
Microscribe robotic arms
A morphospace is an n-dimensional representation of possible form, shape, or structure of organisms. Each axis represents some variable describing the organism (either the raw variable, or a transformed component/coordinate). The point in morphospace represents an individual or an averaged representation of a taxon.
Raup's 3D morphospace for conical shells is a classic example of a morphospace in paleontology and zoology:
From Raup, D.M. 1966. Geometric analysis of shell coiling: general problems. Journal of Paleontology40: 1178-1190.
In this space, the axes represent the translation of the aperture (x), the expansion of the aperture (y), and the distance of the generating curve from the axis (z). The fields represent the distribution of known shells (of mollusks and brachiopods) within this morphospace.
Raup's morphospace is an example of a theoretical (or mathematical) morphospace. The axes are pre-determined paramaters, allowing for all possible ranges of morphological variability to be expressed by systematically varying the values. It may be that some of the space is not occupied at all. One advantage of this sort of morphospace is that it is set up "in advance" of any analysis, as it were. The axes are not contingent on the measurements you take, and you can free add to the plots with new specimens as you discover them. A disadvantage is that it requires you to develop the parameters in advance: in reality, you might not really know which measured variables really are the most significant (i.e., explain the most data range) in your sample.
In order to address this problem, many choose to use empirical morphospaces. In these the axes are derived from statistical analyses of the actual specimens (typically a PCA or Principal Coordinate analysis). Thus the axes of the morphospace are the most significant ones within the population of data you sampled, and the morphospace is likely to be more greatly occupied. A disadvantage, however, is that the axes are analysis-dependent; you can't just pop new measurements onto your current plot. Instead, you would need to rerun the entire analysis and replot the whole set of data.
Revisiting the issues of theoretical morphospace: why might it be that some parts of it are not occupied by known taxa? Several ideas have been proposed (and, as usual, are not mutually exclusive):
Mechanical limitations: it might be that certain combinations of variables simply do not work (i.e., are too fragile; cannot actually be generated by the biological system; etc.)
Nature simply hasn't had time to fill in those spots
In order to get into those regions, evolution would have to move "downslope" on an adaptive landscape
Also called fitness landscapes, these are graphical metaphors proposed by leading New Synthesis proponent Sewell Wright.
Under this concept, there is a "landscape" of peaks (of high fitness) and valleys (low fitness). Populations can only evolve towards adaptive peaks: to do otherwise would mean that the population is moving towards reduced fitness.
Selection (under ordinary circumstances) can only move towards local optima.
But large mutational jumps might get you "over" a peak onto the slopes of an even steeper (more highly adaptive) one
And the landscape itself changes as the environmental conditions change (i.e., what is favored by selection)
Note that morphospaces might be used to explore the ecology in which an organism occupies as much as its shape.
Inferring Function from Morphology
Fossils obviously aren't doing much anymore in terms of function. So how can we infer how these ancient organisms operated? There are several approaches:
Analogies with Living Organisms: the oldest method, using the "form follows function" concept. For instance, aquatic vertebrates today with slender snouts and needle-like teeth tend to feed on small fish, so finding a fossil animal with such jaws in aquatic deposits suggests it might have done the same.
Phylogenetic Inferences: the Extant Phylogenetic Bracket and related methods can help us infer behavior that is inherited from common ancestry. Obviously if the known anatomy of the fossil form contradicts this inference we can determine that it likely lost that function in its evolution.
Biomechanics: Organisms operate in the world of physics, and we can use our knowledge of mechanics (levers, pulleys, torsion, bending strength, compression, etc.) to find the likely forces capable of being exerted by (or on) a part of a living thing.
Complex shapes like bridges, for which the equations are known but solutions are impossible, are broken down in to a series of finite elements - simple shapes for which the equations can be solved. Together, these are the finite element mesh. The composite solution of equations for each element approximates a solution for the complex object being modeled.
Finite elements can be on dimensional rods, two dimensional polygons, or simple three dimensional polyhedrons.
The more elements, the more computations are required but the smaller the error. Thus a compromise is sought. An advantage of the method is that the mesh can have more detail in important regions and less detail in unimportant ones.
Nodes: Corners and surfaces of finite elements, where they interface with adjacent elements.
The displacement of nodes in a given element serves as the basis for the calculation of system equations for the entire element, which are represented as a matrix
Because adjacent elements share nodes, their matrices overlap. Through a series of matrix calculations, stress and strain experienced by each element can be calculated and mapped.
These values can then be fed into secondary iterations of the process to simulate sequences of events such as fluid flow.
Additionally, trace fossil data might be used to see a record of behavior (especially locomotion and feeding) in the fossil record, so long as you can identify the trace maker.
The spandrels of San Marco
Is All Form Functional?
Much of functional morphology rests on the notion that adaptation under the influence of natural selection is the paramount determinant of form. This had been the basic assumption for 19th and much of the 20th Century in evolutionary biology.
S.J.Gould and R. Lewontin challenged this idea in 1979, and took a critical look at the "pan-selectionist" appropach. They compared this to attempts to infer structural function to spandrels, sections of wall filling spaces between load-bearing components like arches and domes in classic Medieval churches. (See the spandrels of San Marco right.) In fact, spandrels are just space-fillers between functional elements; byproducts of how the arches and domes were built rather than designed features per se. (By the way, the features show are technically NOT spandrels (which are along the corners of arches), but their 3D equivalent pendentives (which are at the corners of domes). Nevertheless, we use the term spandrel for biological structures resulting as developmental byproducts.)
A biological comparison: the human chin - a functionless feature that is a developmental consequence of the reduction of the anterior tooth row.
Structural constraints: By their basic anatomy and margin accretion growth strategy, adult mollusksmust retain the skeleton they had as juveniles, even if they would be better off not having to carry it around.
Contingency (evolutionary heritage): Organisms must work with what they inherit. Indeed the variety of ways in which they have addressed biomechanical problems - each in some way suboptimal but all good enough - testifies to that fact. E.G.: rapid swimming in vertebrates and cephalopods. Rapid undulations of the body is more energetically efficient than cephalopod "jet-propulsion," in which they must expend energy hauling their reaction mass (water) around inside their mantles before expelling it; yet there squids are, the victims of their heritage.
Pleiotropy: Some features may be suboptimal because they are coded in the same gene that codes for a highly beneficial trait. Consider aggression and genitalia in hyenas.
Structures may have more than one function: In that case, their form represents a compromise between adaptive trends for each function. Consider wydah tails. The male must use this structure both to attract a mate, and in flight whereas the female only needs to fly with hers.
Limits to genetic diversity: Just because a given change is adaptive doesn't mean that a species has the genetic material with which to effect it.
The result is that few structures are adaptively optimal, as in the classic panda's thumb. (Another structure constrained by evolutionary history.)
Testing functional hypotheses:
So how can we test a functional hypothesis for a morphology? Prothero provides a consensus list of methods:
Define and diagnose the adaptation. This enables you to identify creatures that may have it
Employ phylogenetic information to determine whether the "adaptive feature" is actually a derived evolutionary state.
Consider whether the feature is a "spandrel"-an inevitable artifact of other features.
In a paleontological setting, propose a hypothesis to explain the structure's function. (Once the above issues have been addressed.) This can then be tested using:
Structures that appear functionally analogous are our starting point for the development of hypotheses about life-style. For example, numerous anatomical characters demonstrate that the extant timber wolf and the extinct native North American dire wolf (right) are closely related and generally similar. They differ mostly in that the dire wolf's skull and teeth were more robust - a little closer to what one sees in spotted hyaenas or other bone-crushing animals.
Thus, we speculate that the dire wolf was generally similar to the timber wolf, but better adapted to bone crushing. Because we are dealing with an organism and with biomechanical functions that are well understood, this contention can be evaluated with any of the methods listed above.
With less familiar creatures, or creatures that are less biomechanically constrained, we face greater difficulties. Consider the Permian reptile Eudibamus cursoris(Berman et al., 2000). Considered, largely on the basis of its small forelimb to hindlimb length ratio to be facultatively bipedal. (Indeed, bipedal lizards typically do show such a ratio.)
Alas, so do other, ecologically dissimilar reptiles, including vertical clingers and leapers like Boyd's forest dragon. In this light, speculations on Eudibamus' locomotion seem reckless.
What happens when we try to interpret the fossils of an animal with no obvious modern analog?
Consider Parasaurolophus, a Cretaceous lambeosaurine ornithopod dinosaur. Like other ornithopods, it had a deep, laterally compressed torso and tail. The vertebral column of both was stiffened by ossified tendons. The comparison of the deep flat tail to those of swimming vertebrates, combined with the early 20th century conviction that large dinosaurs would have had trouble generating the energy to support their weight on land gave rise to reconstructions of Parasaurolophus as an aquatic creature. The idiosyncratic crest must, therefore, have been a snorkel.
This, at least, was a falsifiable hypothesis. More thoughtful biomechanical analyses of the vertebral column showed that the trunk and tail were inflexible from side to side. Furthermore, the tail vertebrae of actual aquatic reptiles like crocodilians generally had long lateral extensions to give axial muscles better leverage.
Worse, although the crest connected to the pharynx and nasal cavity though an elaborate system of passages, no specimen of the "snorkel" actually had a hole in the top to admit air. Eventually a revised interpretation of Parasaurolophus as a land animal emerged.
Still, its crest stimulates speculation, including.
According to Weishampel, 1997 resonating chambers in the nasal passages facilitated vocalizations. Weishampel modelled these passages in PVC pipe, creating an instrument that produced sound in a low register similar to that of living elephants.
Interesting ideas, all based in some way on the comparative method and absolutely non-falsifiable
Perceiving comparative similarities, like the perception of any pattern in a set of data, is a creative act. Ironically, of all paleontological methods, this one probably has the greatest tendency to push the limits of the proper Scientific Method. In the worst case, the result can be "Just so stories" - appealing speculation with no hope of ever being rigorously tested.
